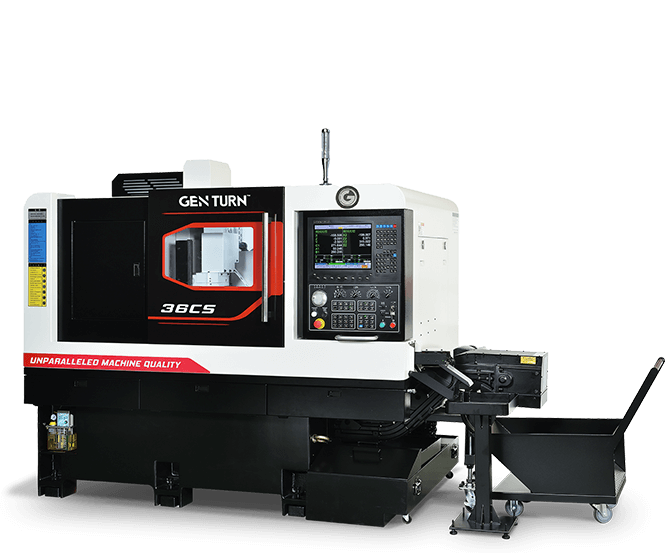

36-CS
7-Axis CNC Swiss Machine Without Guide Bushing
- L36 mm 1-3/8” Bar Capacity
- LDual “C” Axis and “Y” Axis with 19” Travel
- L27-Tools with 11-Driven Tools
- LSimultaneous Main & Sub-Spindle CNC Swiss Machining
- LParts Catcher and Chip Conveyor Included
- L1,181 Inch per Minute Rapid Rates
$0.00 Down Financing
Machine Specifications
Main Spindle
Maximum RPM / Spindle Bearing | 6,000 RPM / 5 Bearing Spindle, 3 Front, 2 Rear ø110 mm |
Spindle Motor | 10 HP 3,000 RPM spindle Motor, 2:1 Pulley Ratio |
Collet Nose | Brown & Sharpe #22 or Traub A-32 |
Drawtube Bore | 1.456” (37 mm) |
Maximum Barstock Diameter | 1.25” (32 mm) Standard 1.375” (36 mm) with Adapter |
X-Axis Travel | 7.28” (185 mm) |
Y-Axis Travel (true Y-Axis, not compound Y) | 19.29” (490 mm) |
Z-Axis Travel | 6.50” (165 mm) |
Rapid Travel Speed: X, Y, Z | 1,181 IPM (30 m / min) |
Minimum Input Unit | 40 millionths (0.00004”) (0.001 mm) |
OD Turning Tool Positions | 6 OD Tools (1/2” or 12 mm) (5-5/8” Tool Plate Available) |
ID Turning Tool Positions | 5 ID Tools |
OD Turning Tool Size | 1/2” or 12mm (5/8” or 16 mm Optional) |
ID Turning Tool Bore Size | 25 mm |
Spindle Center Height | 40” (1,015 mm) |
Sub Spindle
Sub Spindle RPM/Spindle Bearing | 6,000 RPM / 4-Bearing / Quad-Duplex Pair Configuration | |
Sub Spindle Motor | 5-HP 3,000 rpm Spindle motor, 2:1 pulley ratio | |
Collet Nose | Brown & Sharpe #22 or Traub A-32 | |
Maximum Barstock Diameter | 1.250” in Collet Chuck (1.080” (27.5mm) Pass Thru) | |
X-Axis Travel | 11.53” (293mm) | |
Z-Axis Travel | 11.61” (295mm) | |
Minimum Input Unit | 0.0001” (0.001mm = 40 millionths inch) | |
ID Turning Tool Bore Size | 25mm | |
Air Blast Nozzle | Included | |
Finished Parts Ejector | Included, Along with Parts Catcher & Parts Conveyor Belt |
Live Tooling
Cross Slide Live Tools | 4-ER-20 Cross Slide Live Tools, 4,000 RPM, 2.0 HP (1.5 kw) |
Front Slide Live Tools | 3-ER-20 Front Slide Live Tools, 4,000 rpm, 1.0 HP (0.75 kw) |
Live Tool Collet Size | ER-20 Collet, Ø1/2” (0.5 – 13 mm) Tool Shank Capacity |
Max RPM for Live Tools | 4,000 RPM (1 cross live tool can be substituted on subspindle tool block) |
Machine Dimensions
Machine Length | 101” (2420mm) ( *+ 36” for Chip Conveyor) |
Machine Depth | 68” (1500mm) |
Machine Height | 80” (1985mm) |
Machine Weight | 8,000lbs (3,628kgs) |
Coolant Pump | Dual 50psi 3/4-HP Coolant Pumps for Main and Subspindle |
Coolant Tank Capacity | 63-gallon Coolant Tank, with Coolant Flow Confirmation Sensor |
Lubrication Distribution | Way Lube Distributed at 3-6 cc / 15-minute Cycle |
Machine Power Requirements | 220vac ±5%, 63-amps, 3-phase, 60Hz |
Air Requirements | 85-PSI at 10-CFM for Parts Catcher, Parts Ejector, & Air Blast |
